Precise & Efficient

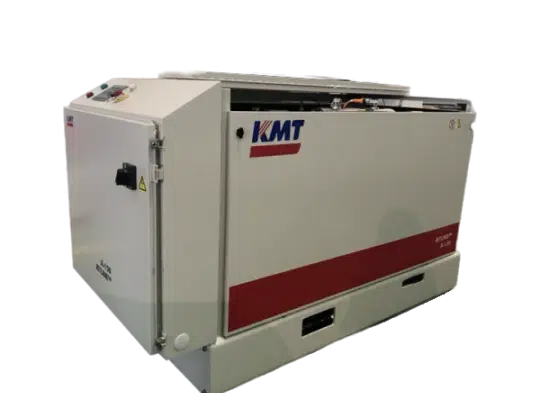

KMT Jetline 30/50
PrecisionFlow Waterjets proudly introduces the KMT Jetline30/50 Intensifier Waterjet Pump, engineered to redefine cutting precision and efficiency. With its robust construction and advanced features, this powerhouse pump is designed to meet the demands of the most challenging cutting applications.
Technical Parameters
Dive into the Specifications of the KMT Jetline 30/50
Model
HJ400
Nominal Power Rate
37kw
Power Supply
380V 50hz 3 phase
Length x Width x Height
1935x914x1180mm
Max. Continuous Pressure
500-3,800bar / 50-380Mpa
Max. Water Flow Rate
3.8L/min
Control Voltage & Power Supply
24VDC
Nom. Motor Current
380V/50Hz 66A
Max. Circuit Braker
380V/50Hz 80A
Control System
Siemens
Pneumatik Supply Pressure Requirement
5.9bar
Max Noise Level
<79dB
Max. Hydraulic Pressure
190bar
Continuous Working Time
24 hours
Features of KMT Jetline 30/50
- With a nominal power rate of 37kW, the KMT Jetline30/50 Intensifier Waterjet Pump provides the energy needed for high-pressure cutting applications.
- Built to withstand the rigors of continuous operation, this pump features a durable construction and compact design.
- Equipped with a Siemens control system, the Jetline 30/50 offers precise control and monitoring of cutting parameters, ensuring optimal cutting results every time.
- Capable of delivering a maximum continuous pressure ranging from 500 to 3,800 bar (50-380 MPa) and a maximum water flow rate of 3.8L/min at maximum pressure.
